CF1390CCD
Chengfeng
Feature
1.The engraving machine is adopting advanced international DSP controller. Using USB interface to transmit data, offline work and equipped with high capacity memory which can save many work files that greatly increase the work efficiency.
2.The software of the laser engraving machine has the shortest route optimize function which highly increases the work efficiency. Supporting define the cut or engrave order through multifold colors.
3. Automatic redress for light decay during the cutting and engraving procedures to ensure the laser power keep the same in different work position. Deceleration device is installed on the guide rail make more stable performance and smooth cutting surface.
4. Many kinds of optional parts are available for the laser machine, for example: Rotary system, Red light pointer,Motorized up/down worktable, etc, which fully meet different needs.
5. According to different process materials, the machine is equipped with suitable worktable (knife style worktable, Honeycomb worktable etc).Also to the soft materials, vacuum worktable will be installed to meet the needs.
6.Co2 Laser Engraving Cutting Machine with CCD Visual Camera Auto Edge Tracking Laser software supports the files from AutoCAD, CorelDraw, Photoshop, stable performance and easy operation. It supports the file format of BMP, JPGE, AI, PLT, CDR, DXF etc.
Feature
1.The engraving machine is adopting advanced international DSP controller. Using USB interface to transmit data, offline work and equipped with high capacity memory which can save many work files that greatly increase the work efficiency.
2.The software of the laser engraving machine has the shortest route optimize function which highly increases the work efficiency. Supporting define the cut or engrave order through multifold colors.
3. Automatic redress for light decay during the cutting and engraving procedures to ensure the laser power keep the same in different work position. Deceleration device is installed on the guide rail make more stable performance and smooth cutting surface.
4. Many kinds of optional parts are available for the laser machine, for example: Rotary system, Red light pointer,Motorized up/down worktable, etc, which fully meet different needs.
5. According to different process materials, the machine is equipped with suitable worktable (knife style worktable, Honeycomb worktable etc).Also to the soft materials, vacuum worktable will be installed to meet the needs.
6.Co2 Laser Engraving Cutting Machine with CCD Visual Camera Auto Edge Tracking Laser software supports the files from AutoCAD, CorelDraw, Photoshop, stable performance and easy operation. It supports the file format of BMP, JPGE, AI, PLT, CDR, DXF etc.
Machine model | 1390 laser machine with CCD camera |
Laser type | Sealed CO2 laser tube, wavelenght:10:64μm |
Laser power | 60W/80W/100W/130W/150W/180W |
Cooling mode | Circulating water cooling |
Laser power control | 0-100% software control |
Control system | DSP offline control system |
Max. engraving speed | 60000mm/min |
Max cutting speed | 50000mm/min |
Repetition accuracy | ≤±0.01mm |
Min. Letter | Chinese:1.5mm, English:1mm |
Table size | 1300*900mm |
Working voltage | Single phase 110V/220V.50-60HZ |
Working conditions | temperature:0-45℃,humidity:5%-95% |
Control software language | English/Chinese |
File formats | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las,*.doc |
Machine model | 1390 laser machine with CCD camera |
Laser type | Sealed CO2 laser tube, wavelenght:10:64μm |
Laser power | 60W/80W/100W/130W/150W/180W |
Cooling mode | Circulating water cooling |
Laser power control | 0-100% software control |
Control system | DSP offline control system |
Max. engraving speed | 60000mm/min |
Max cutting speed | 50000mm/min |
Repetition accuracy | ≤±0.01mm |
Min. Letter | Chinese:1.5mm, English:1mm |
Table size | 1300*900mm |
Working voltage | Single phase 110V/220V.50-60HZ |
Working conditions | temperature:0-45℃,humidity:5%-95% |
Control software language | English/Chinese |
File formats | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las,*.doc |

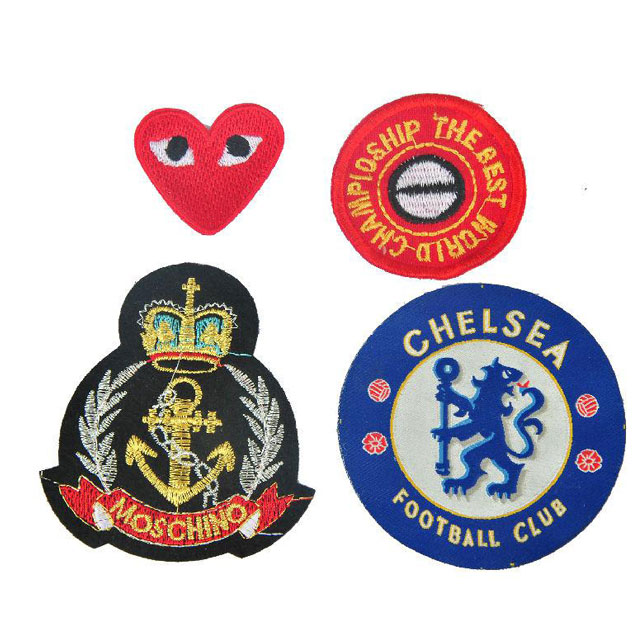

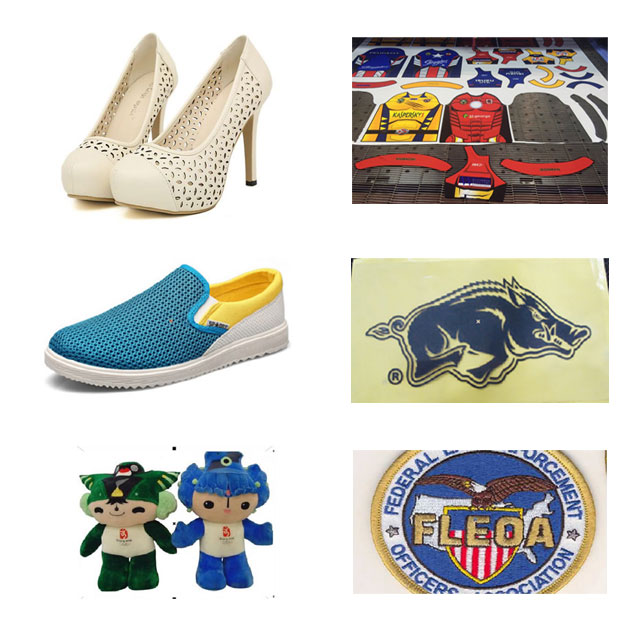

Co2 Laser Engraving Cutting Machine with CCD Visual Camera Auto Edge Tracking has been widely used for engraving and cutting on nonmetal material, including acrylic, wood, plexiglass, architectural models, rubber plates, bamboo products, arts& crafts, panel, lenses, wood& bamboo carving, signboards, crystal characters, packing boxes, models, toys, furniture, textile, fabric, cloth, leather, garment etc.
Co2 Laser Engraving Cutting Machine with CCD Visual Camera Auto Edge Tracking has been widely used for engraving and cutting on nonmetal material, including acrylic, wood, plexiglass, architectural models, rubber plates, bamboo products, arts& crafts, panel, lenses, wood& bamboo carving, signboards, crystal characters, packing boxes, models, toys, furniture, textile, fabric, cloth, leather, garment etc.
